Airflow Mode Actuator Inspection

AIRFLOW MODE ACTUATOR INSPECTION

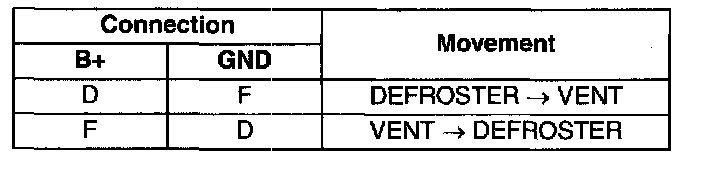

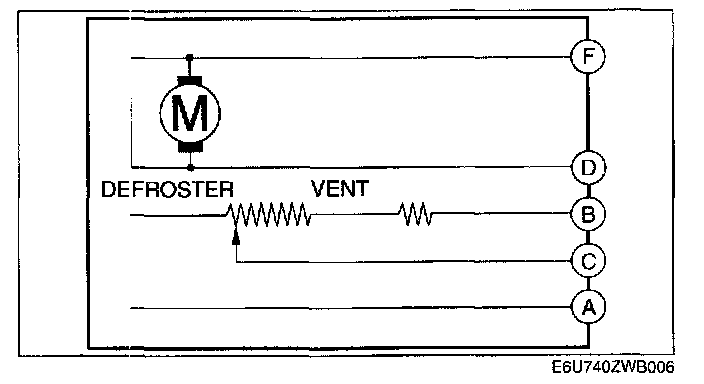

1. Connect battery positive voltage to terminal D or F and around to terminal F or D of the airflow mode actuator.

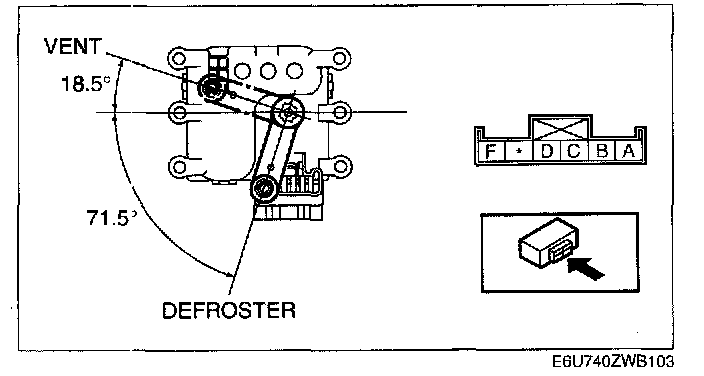

2. Verify that the airflow mode actuator operates as shown above.
- If there is any malfunction, reduce the airflow mode actuator.

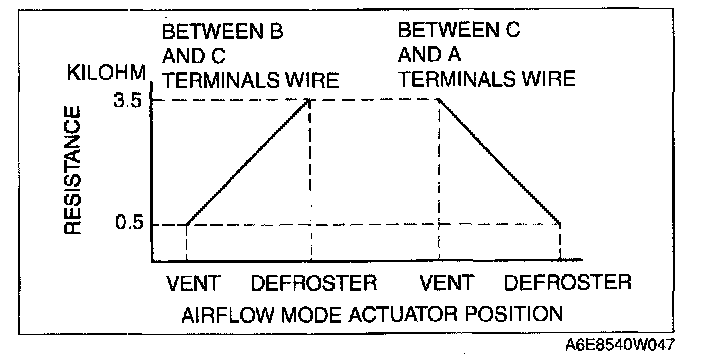

3. Verify that the resistance between the terminals of the airflow mode actuator is as shown in the graph.
- If there is any malfunction, replace the airflow mode actuator.
