Air Intake Actuator

AIR INTAKE ACTUATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the glove compartment
3. Remove the car navigation

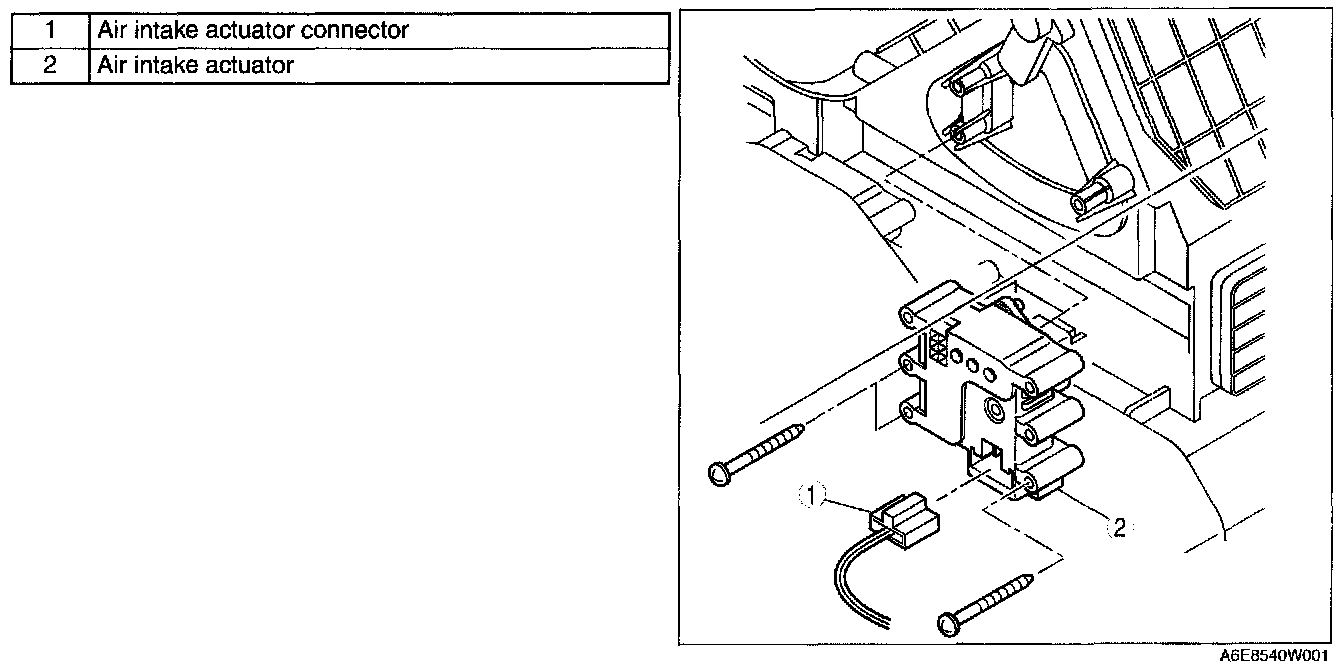

4. Remove in the order indicating in the above table.
5. Install in the reverse order of removal.
