Power Transistor HVAC: Testing and Inspection

POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [L3 WITH TC]

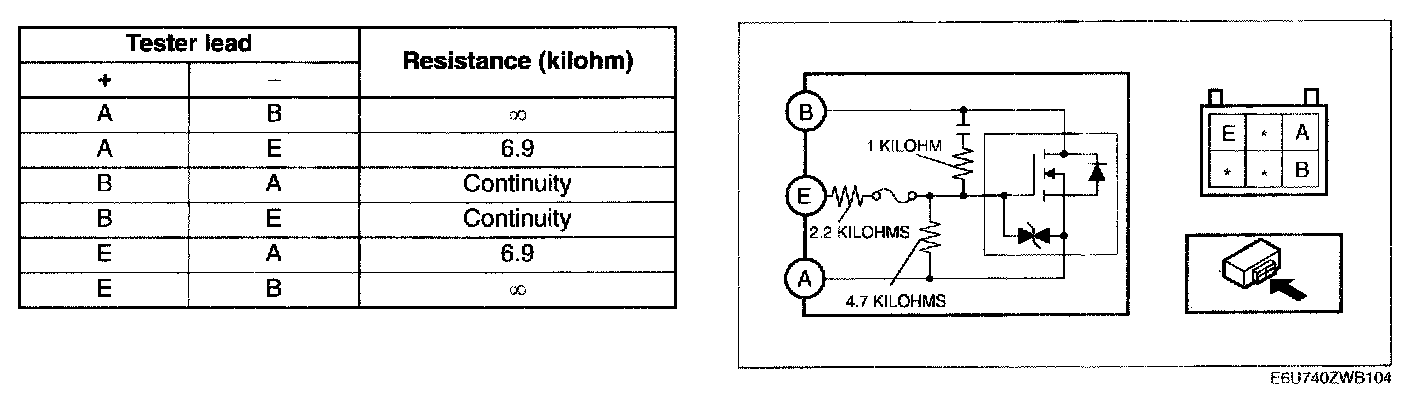

1. Verify that the resistance between the terminals of the power MOS FET is as shown in the table.
- If there is any malfunction, replace the power MOS FET.
