Clockspring Assembly / Spiral Cable: Testing and Inspection

CLOCK SPRING INSPECTION

1. Remove the clock spring.

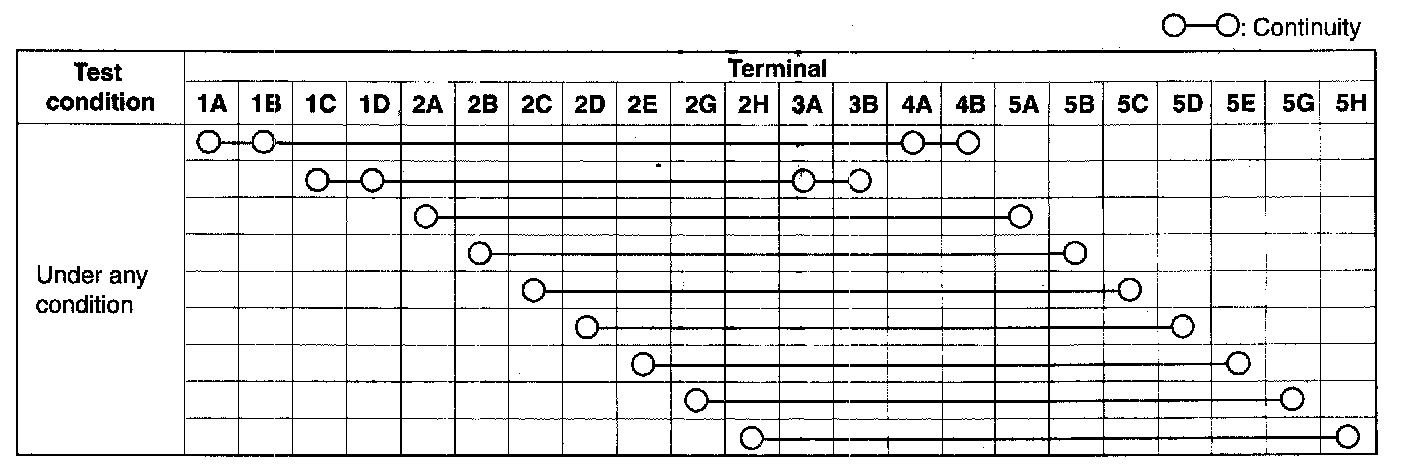

2. Verify that the continuity is as indicated in the table.
- If not as indicated in the table, replace the clock spring.

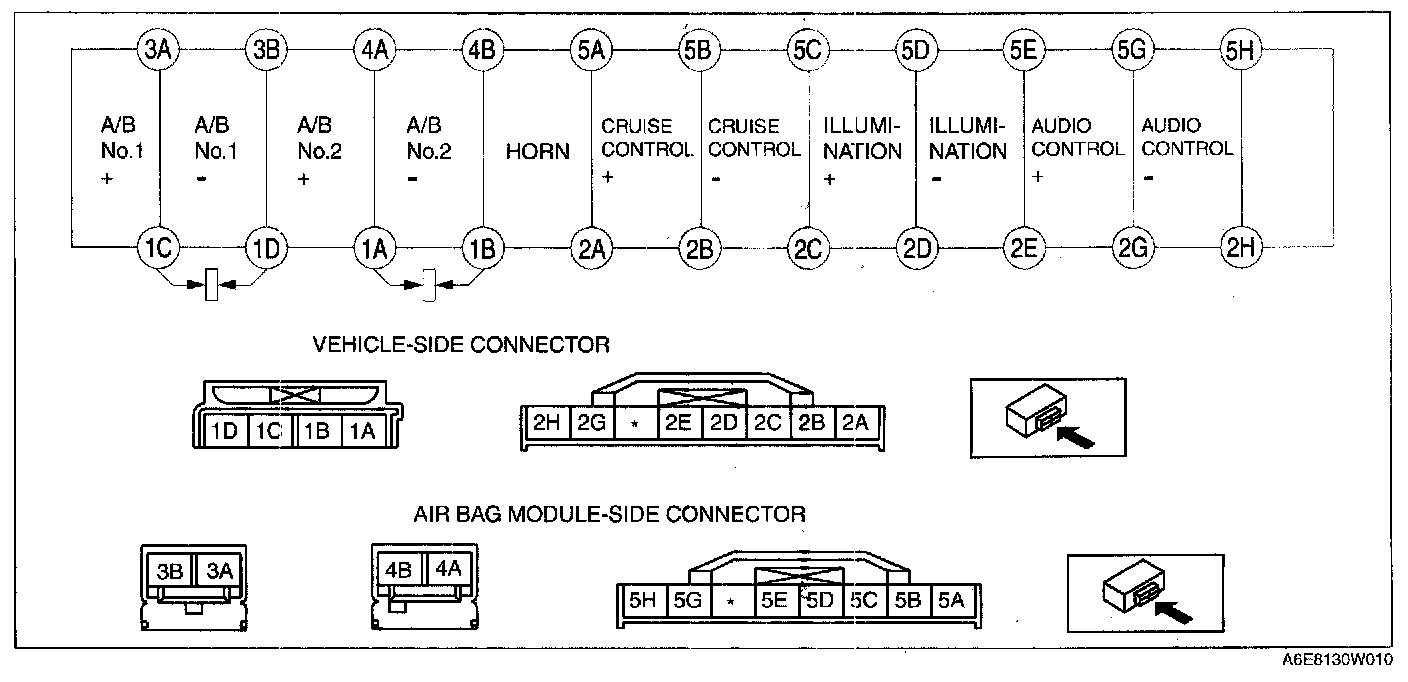

NOTE: When the vehicle-side connector for the clock spring is disconnected, terminals 1A, 1B, 1C and 1D are shorted to prevent unexpected operation (deployment) of the air bag module.
