Clockspring Assembly / Spiral Cable: Adjustments

CLOCK SPRING ADJUSTMENT

NOTE: The adjustment procedure is also specified on the caution label of the clock spring.

1. Set the front wheels straight ahead.

CAUTION: The clock spring will break if over-wound. Do not forcibly turn the clock spring.

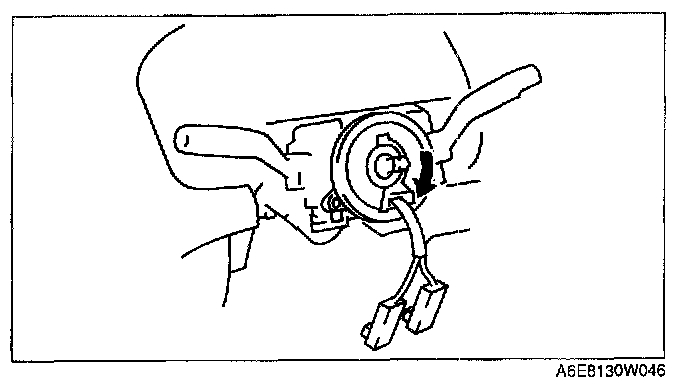

2. Turn the clock spring clockwise until it stops.

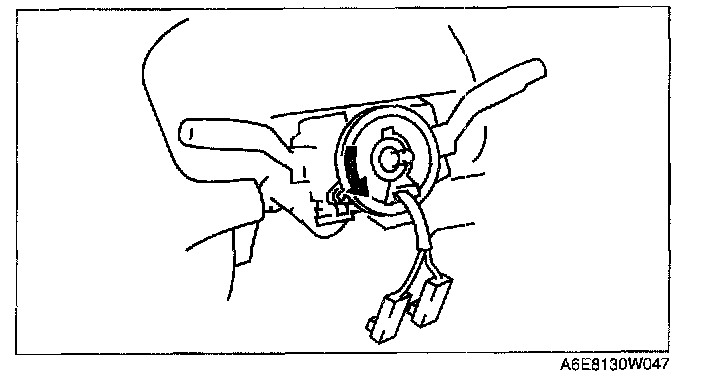

3. Turn the clock spring counter clockwise 2 3/4 turns.

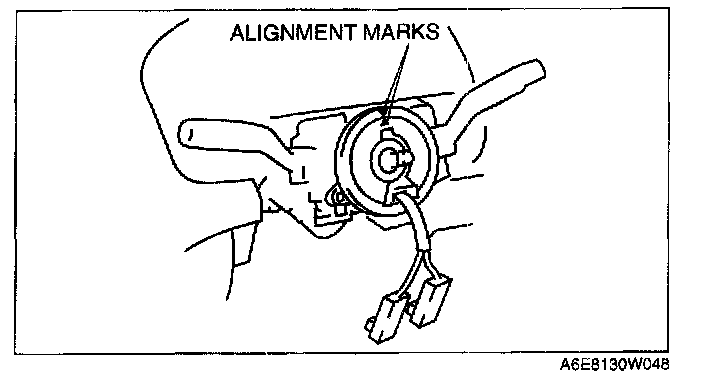

4. Align the mark on the clock spring with the mark on the outer housing.
