Curtain Air Bag Module
CURTAIN AIR BAG MODULE REMOVAL/INSTALLATIONWARNING:
- Handling the air bag system components improperly can accidentally operate (deploy) the air bag modules and pre-tensioner seat belts, which may seriously injure you. Read the service warnings and cautions before handling the air bag system components.
1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for 1 min or more.
3. Remove the headliner.

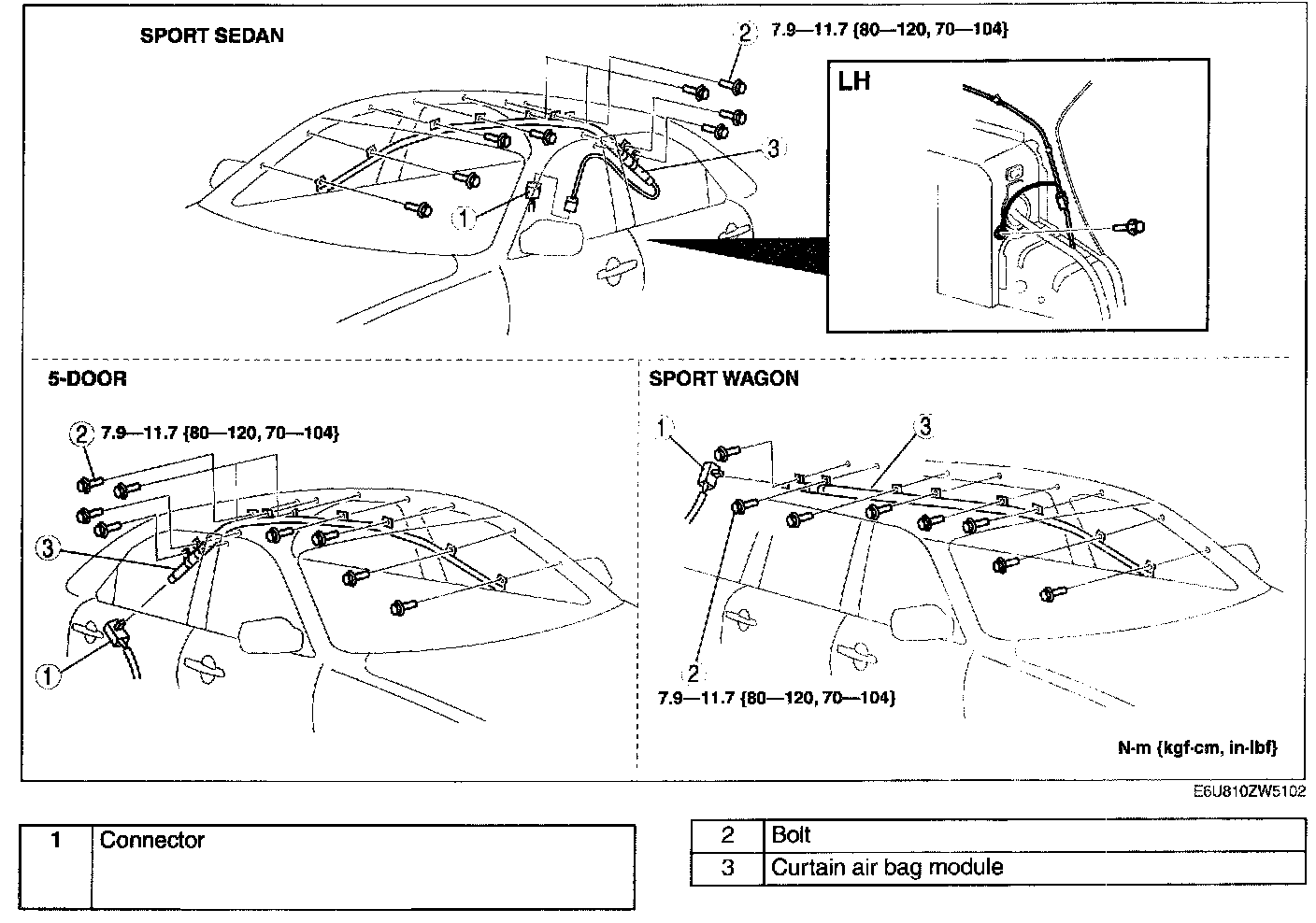

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Turn the ignition switch to the ON position.
7. Verify that the air bag system warning light illuminates for approx. 6 s and goes out.
- If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic.

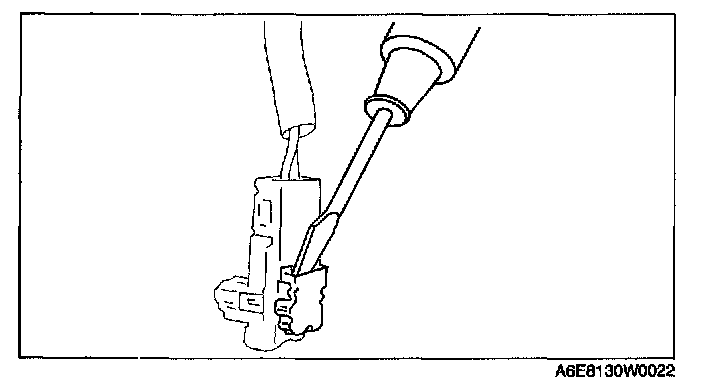

Connector Removal Note (5-Door, Sport Wagon)
1. Using a flathead screwdriver, pry out the connector's stopper plate.
2. Disconnect the connector.
