Rear Side Seat Belt

REAR SIDE SEAT BELT REMOVAL/INSTALLATION

CAUTION: The ELF has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.

Sport Sedan
1. Fold the rear seat back.
2. Remove the rear side seats.
3. Remove the rear package trim.

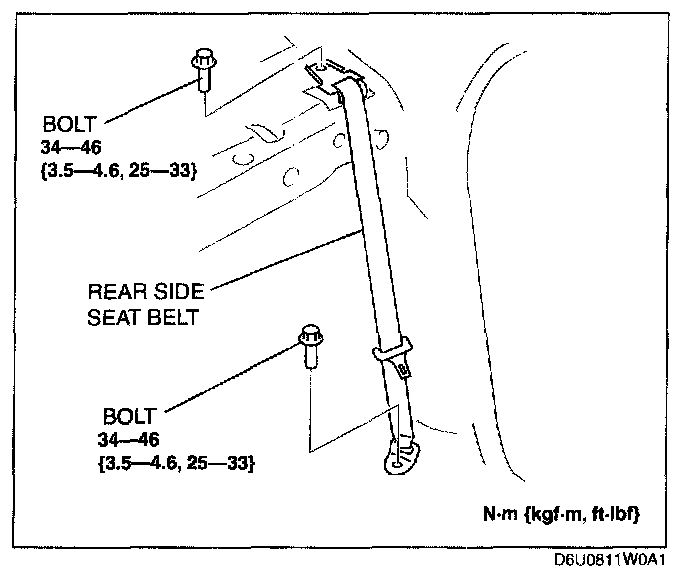

4. Remove the bolts.
5. Remove the rear side seat belt.
6. Install in the reverse order of removal.

5-Door, Sport Wagon

NOTE: Rear side seat belts are built into the rear seat back. See rear seat disassembly/assembly to removal/install the rear side seat Belt.
