Global Positioning System Antenna: Service and Repair

GPS ANTENNA REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the instrument cluster.

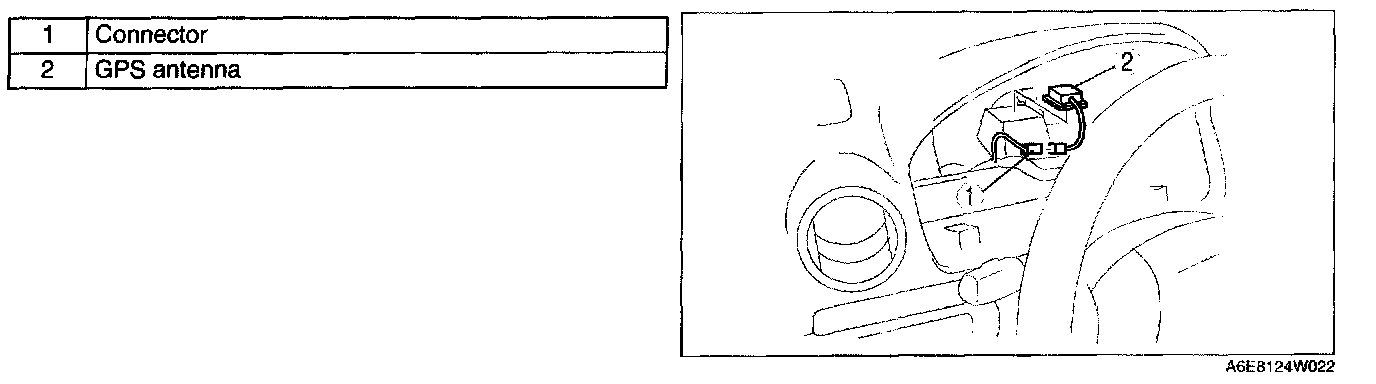

3. Remove in the order indicated in the above table.
4. Install in the reverse order of removal.
