5-Door

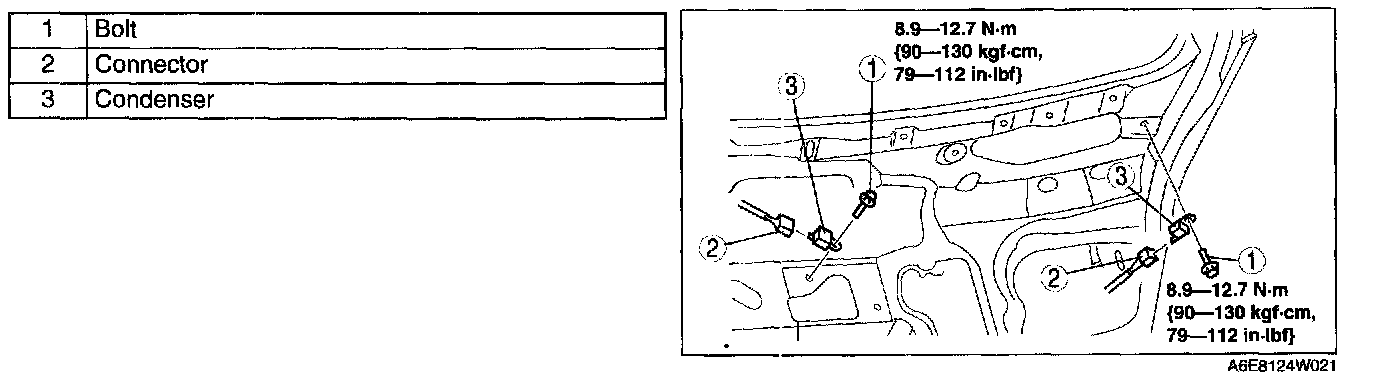

CONDENSER REMOVAL/INSTALLATION [5-DOOR]

1. Disconnect the negative battery cable.
2. Remove the liftgate lower trim.




3. Remove in the order indicated in the above table.
4. Install in the reverse order of removal.
