Rear Door Speaker

REAR DOOR SPEAKER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the rear door trim.




3. Remove in the order indicated in the above table.
4. Install in the reverse order of removal.

Rear Door Speaker Installation Note

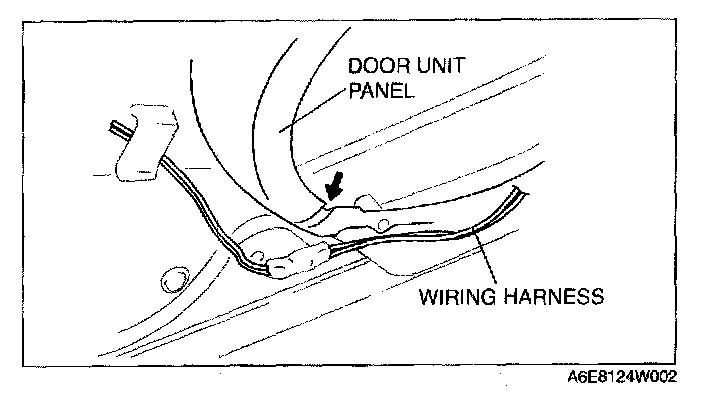

1. Attach the speaker with the wiring harness placed in the groove of the door unit panel.

CAUTION: If the speaker is attached with the harness placed outside of the groove, the wiring harness might be broken.
