Tire House Trim Removal/Installation

TIRE HOUSE TRIM REMOVAL/INSTALLATION

Sport Sedan
1. Remove the rear scuff plate.
2. Remove the rear side seat.

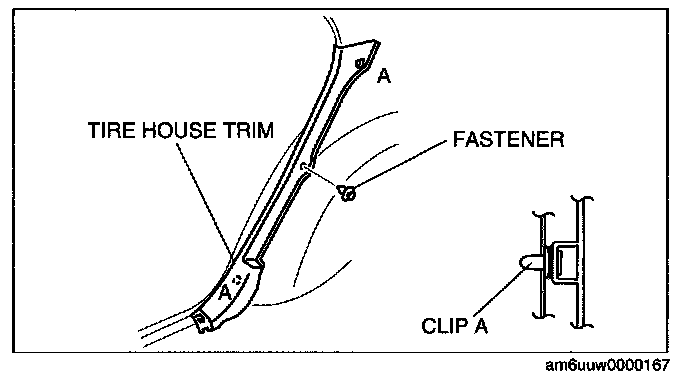

3. Remove the fastener.
4. Pull the tire house trim outward, disengage clips A from the body, and remove the tire house trim.
5. Install in the reverse order of removal.

5-Door, Sport Wagon
1. Remove the rear scuff plate.

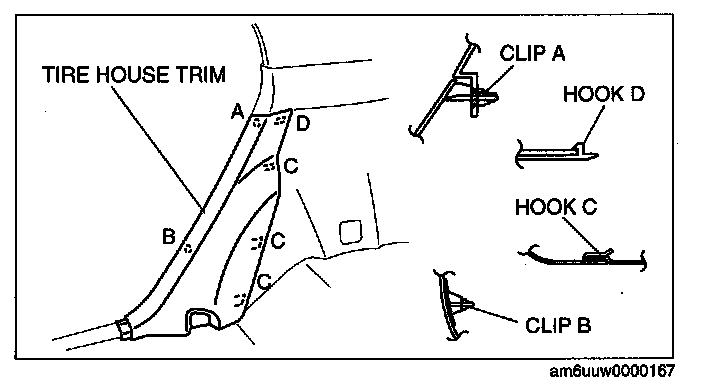

2. Pull the tire house trim toward you, then disengage clip B from the body and clip A, hooks C, D from the trunk side trim.
3. Remove the tire house trim.
4. Install in the reverse order of removal.
