Liftgate Lower Trim Removal/Installation [5-Door, Sport Wagon]

LIFTGATE LOWER TRIM REMOVAL/INSTALLATION [5-DOOR, SPORT WAGON]

5-Door
1. Remove the liftgate upper trim.
2. Remove the liftgate side trim.

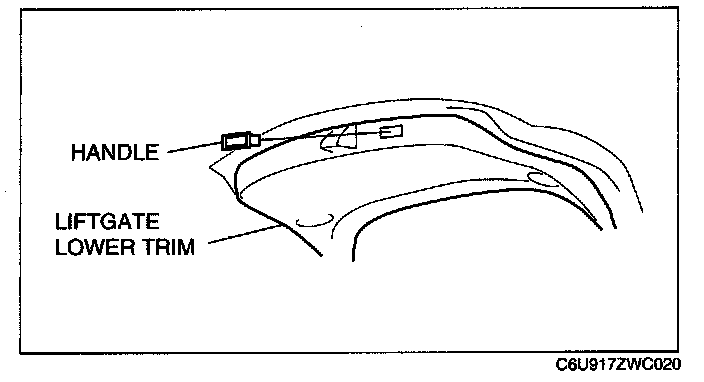

3. Pull the handle toward you, then remove the handle.

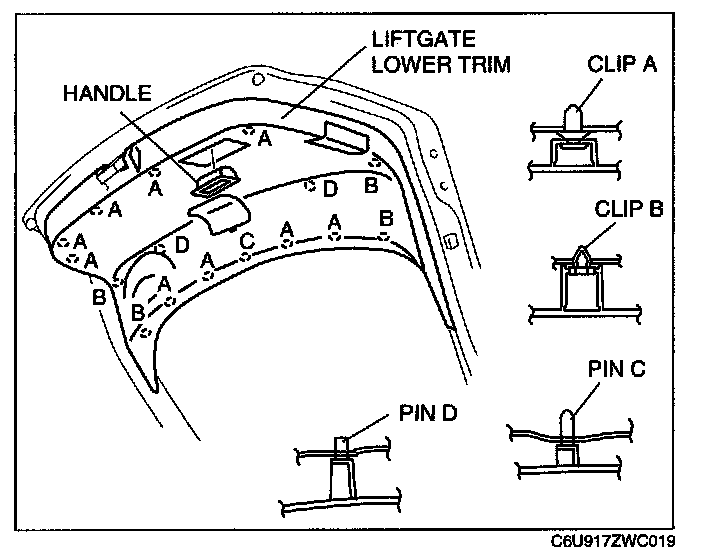

4. Pull the liftgate lower trim toward you, then disengage clips A, B and pins C, D from the body.
5. Remove the liftgate lower trim.
6. Install in the reverse order of removal.

Sport Wagon
1. Remove the liftgate upper trim.
2. Remove the liftgate side trim.






3. Pull the handle toward you, then remove it.

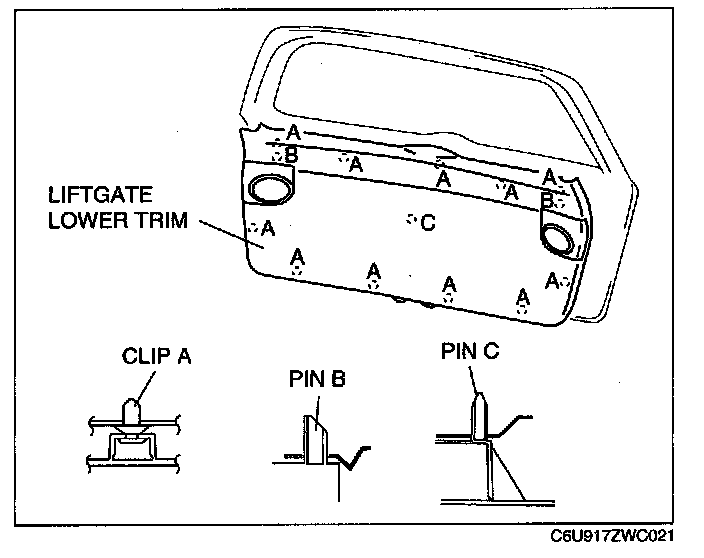

4. Pull the liftgate lower trim toward you, then disengage the clips A and pins B, C from the body.
5. Remove the liftgate lower trim.
6. Install in the reverse order of removal.
