B-Pillar Upper Trim Removal/Installation
B-PILLAR UPPER TRIM REMOVAL/INSTALLATION1. Remove the following parts:
1. Remove the upper anchor of the front seat belt.
2. Front scuff plate
3. Rear scuff plate
4. B-pillar lower trim
2. Partially peel back the seaming welt.

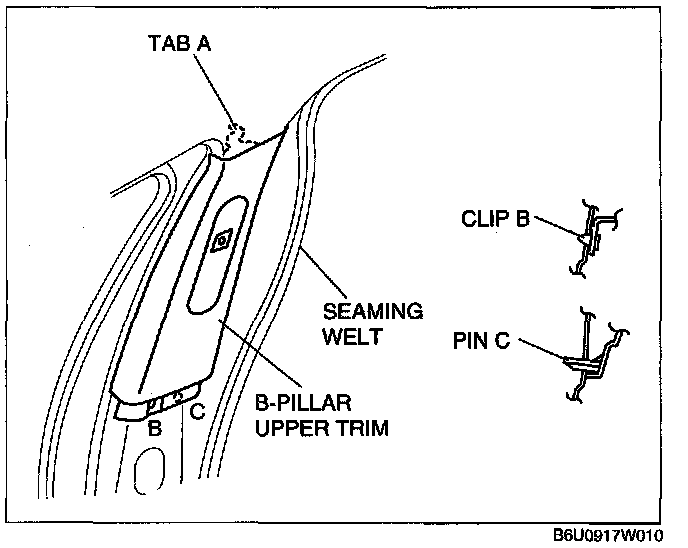

3. Pull the B-pillar upper trim outward, then disengage clip B and pin C from the body.
4. Disengage tab A from the body, then remove B-pillar upper trim.
5. Install in the reverse order of removal.
