D-Pillar Trim Removal/Installation [Sport Wagon]

D-PILLAR TRIM REMOVAL/INSTALLATION [SPORT WAGON]

1. Remove the rear scuff plate.
2. Remove the tire house trim.
3. Remove the trunk side upper trim.

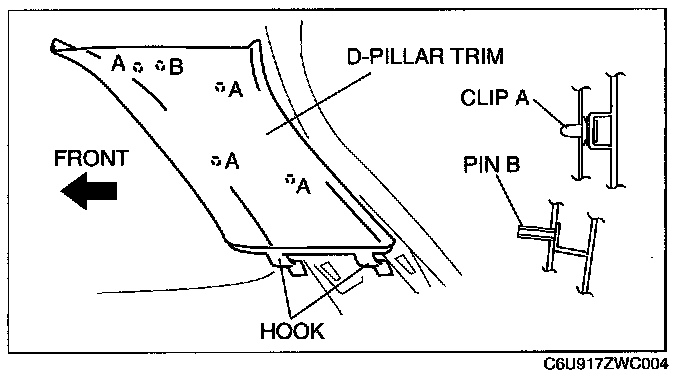

4. Pull the D-pillar trim forward, then disengage the clips A and pin B from the body.
5. Remove the hook from the body, then remove the D-pillar trim.
6. Install in the reverse order of removal.
