Sunroof / Moonroof Panel: Adjustments
GLASS PANEL ADJUSTMENT1. Fully close the glass panel.

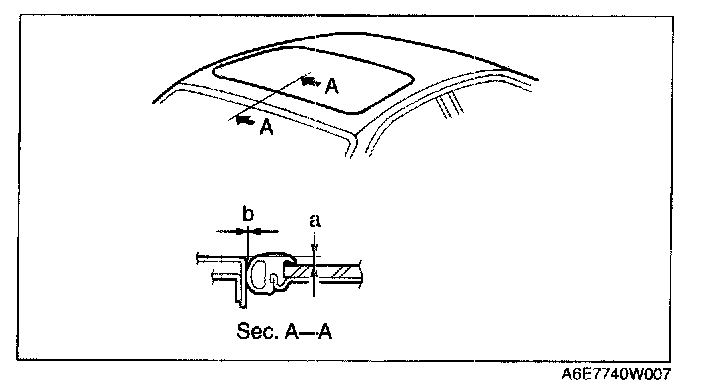

2. Measure the gap and height between the glass panel and body.
3. If not as specified, loosen the glass panel installation screws and reposition the glass panel.
Clearance
a: 2.0-2.2 mm (0.079-0.086 in)
b: 0 mm (0 in)
4. Tighten the installation screws.

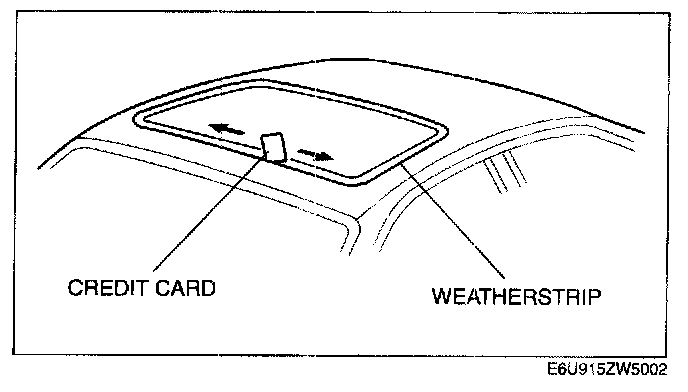

5. insert a credit card between the weatherstrip and the body of the vehicle. Verify that the sunroof shut tightly (there is resistance when the credit card is moved).
- If the sunroof is not shut tightly, readjust by performing Steps 3 and 4.
