Recliner Motor

RECLINER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the driver's side front seat.
3. Remove the front cover (No.1. No.2) and side cover. (See FRONT SEAT DISASSEMBLY/ASSEMBLY [L3 WITH TC])

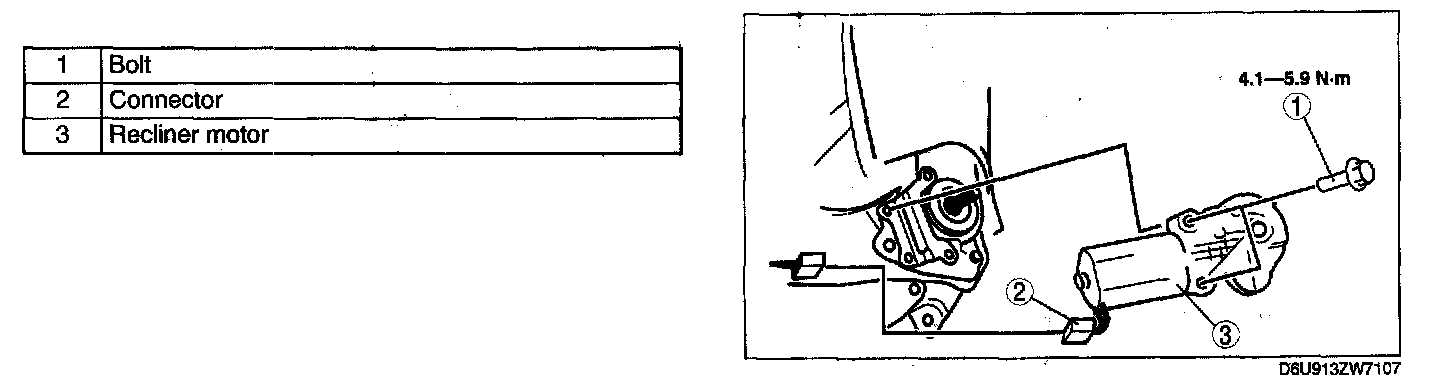

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
