Freeze Frame PID Data Access Procedure

Freeze Frame PID Data Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.

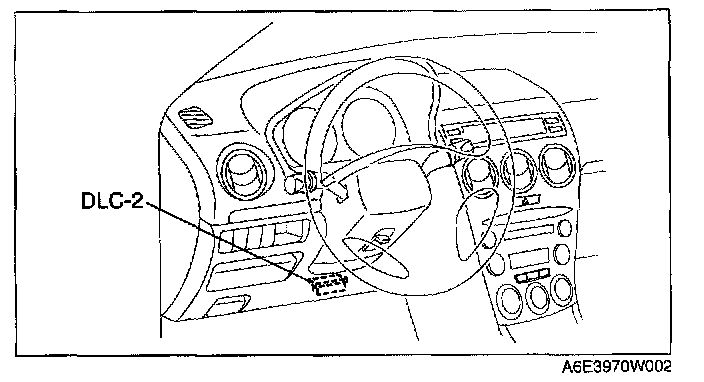

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Record the FREEZE FRAME PID DATA using the WDS or equivalent.
