Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the fasteners, then slightly bend back the mudguard.

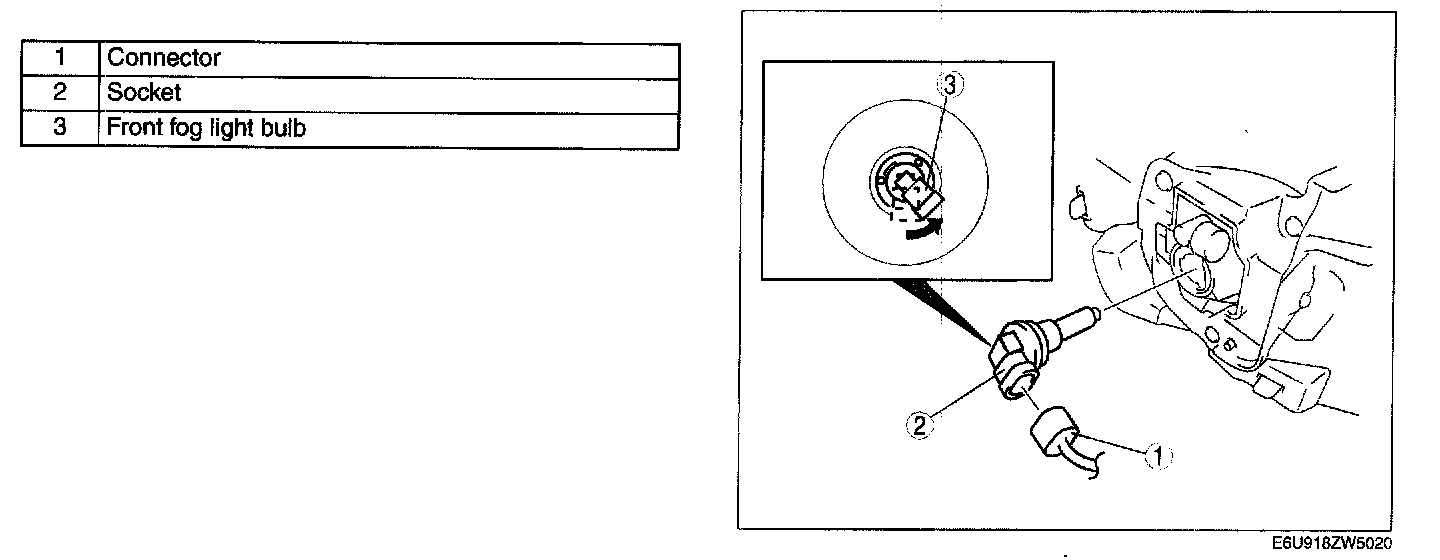

3. Remove in the order indicated in the table.

CAUTION: A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

4. Install in the reverse order of removal.
