Front MAP Light

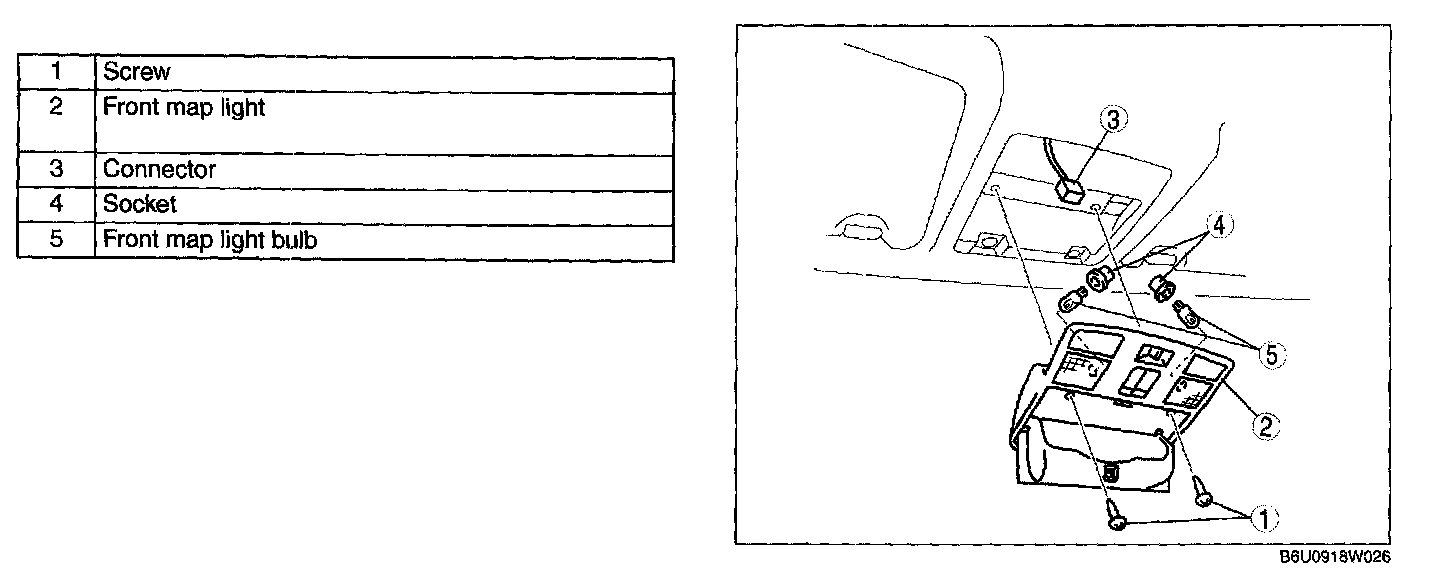

FRONT MAP LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.




2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

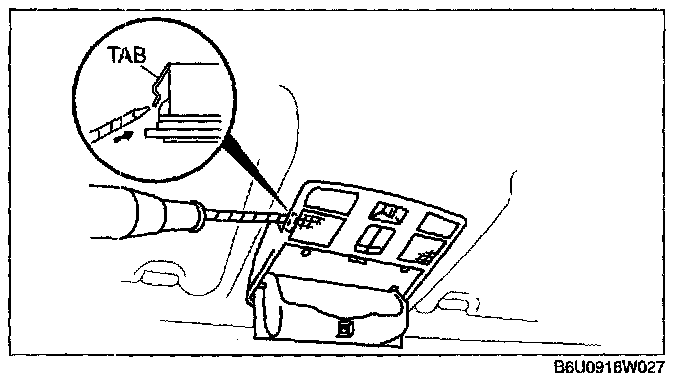

Front Map Light Removal Note




1. Insert a tape-wrapped flathead screwdriver into the gap between the headliner and the front map light.
2. Push the tabs to remove the front map light.
