Washer Fluid-Level Sensor [L3 With TC]

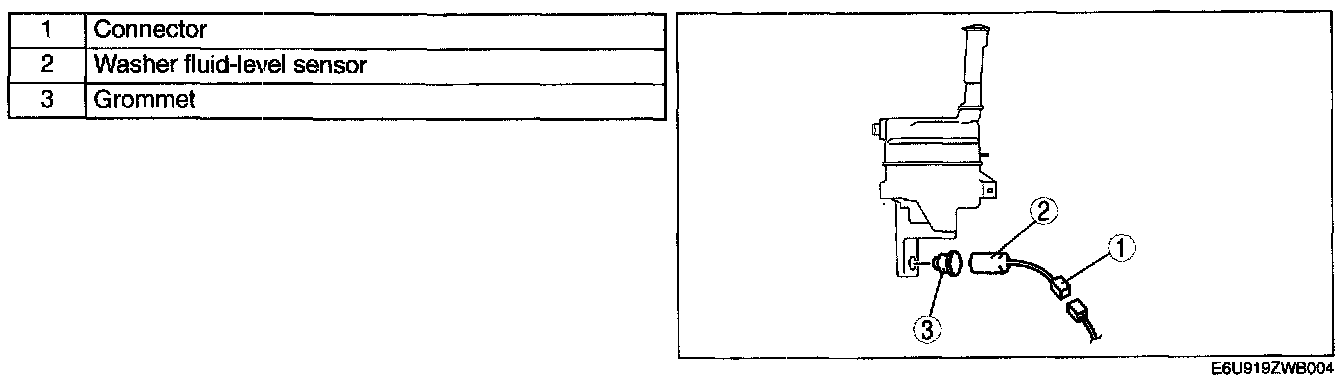

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the washer tank.




3. Remove in the order indicated in the above table.
4. Install in the reverse order of removal.
