Windshield Washer Hose

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Remove the hood insulator.
2. Partially peel off the right side mud guard.

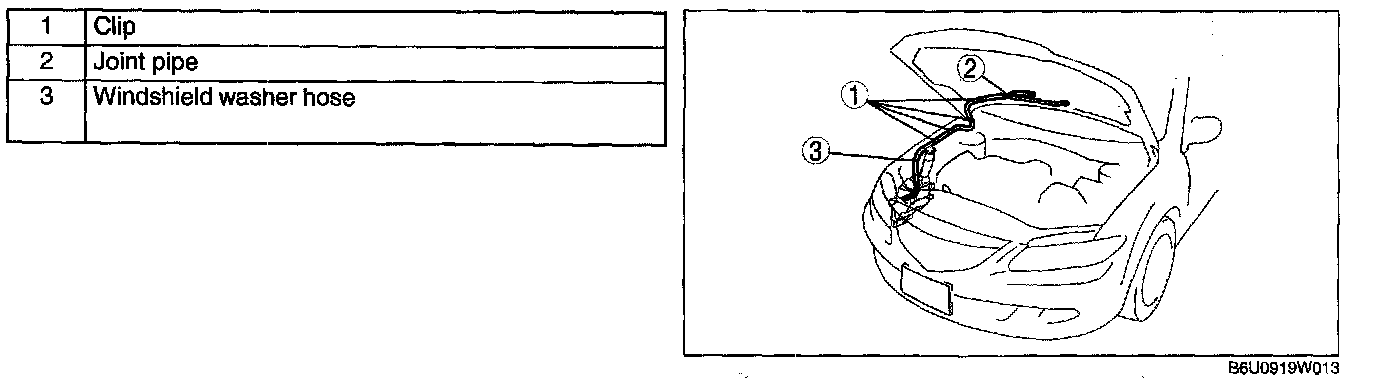

3. Remove in the order indicated in the above table.
4. Install in the reverse order of removal.

Windshield Washer Hose Installation Note

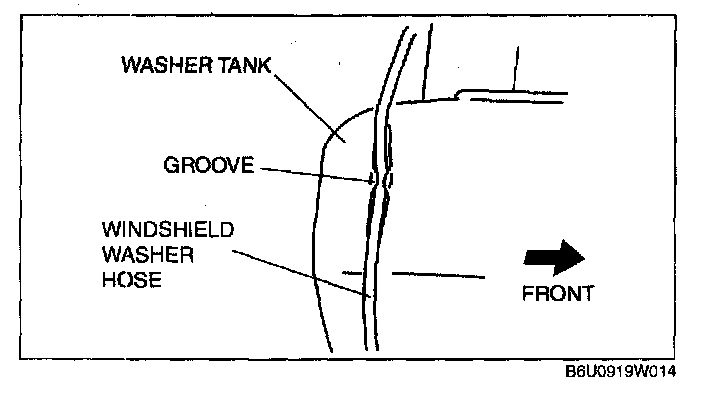

1. Install the windshield washer hose by inserting it in the washer tank groove.
