Windshield Washer Motor Inspection [L3 With TC]

WINDSHIELD WASHER MOTOR INSPECTION [L3 WITH TC]

1. Disconnect the negative battery cable.
2. Remove the washer tank.

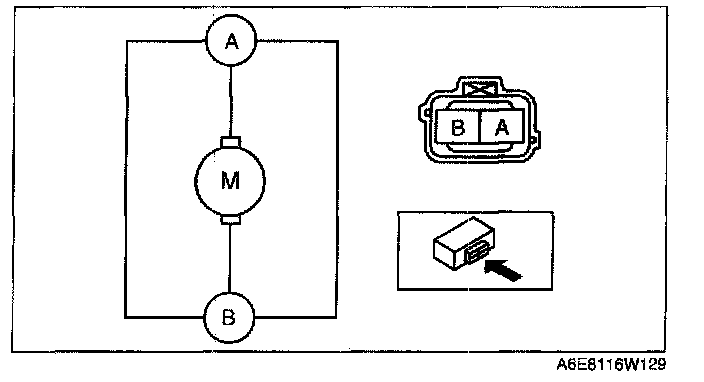

3. Connect battery positive voltage to the motor terminal B and ground to the motor terminal A.
4. Verify that the windshield washer motor operates.
- If the motor does not operate, replace the windshield washer motor.
