After Repair Procedure [FS5A-EL]

AFTER REPAIR PROCEDURE [FS5A-EL]

Caution:
^ After repairing a malfunction, perform the following procedure to verify that the malfunction has been corrected.
^ When performing this procedure, be sure to drive the vehicle at lawful speed and pay attention to the other vehicles.

1. Connect the WDS or equivalent to the DLC-2.
2. Turn the ignition switch to the ON position (engine off)
3. Verify that DTCs are cleared from memory
4. Perform the following DTC inspections to ensure that the DTCs have been received:

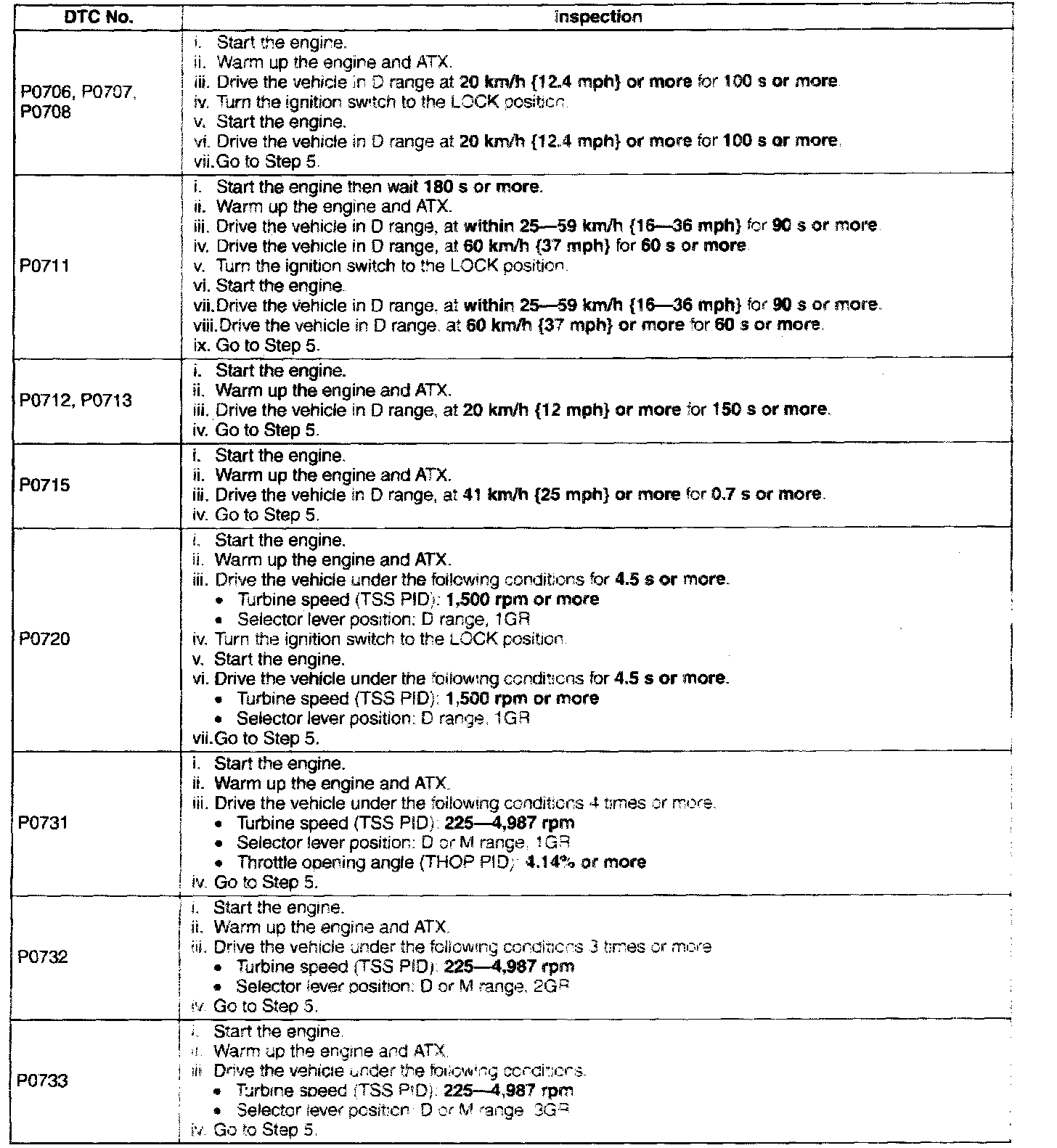

P0706-P0733:

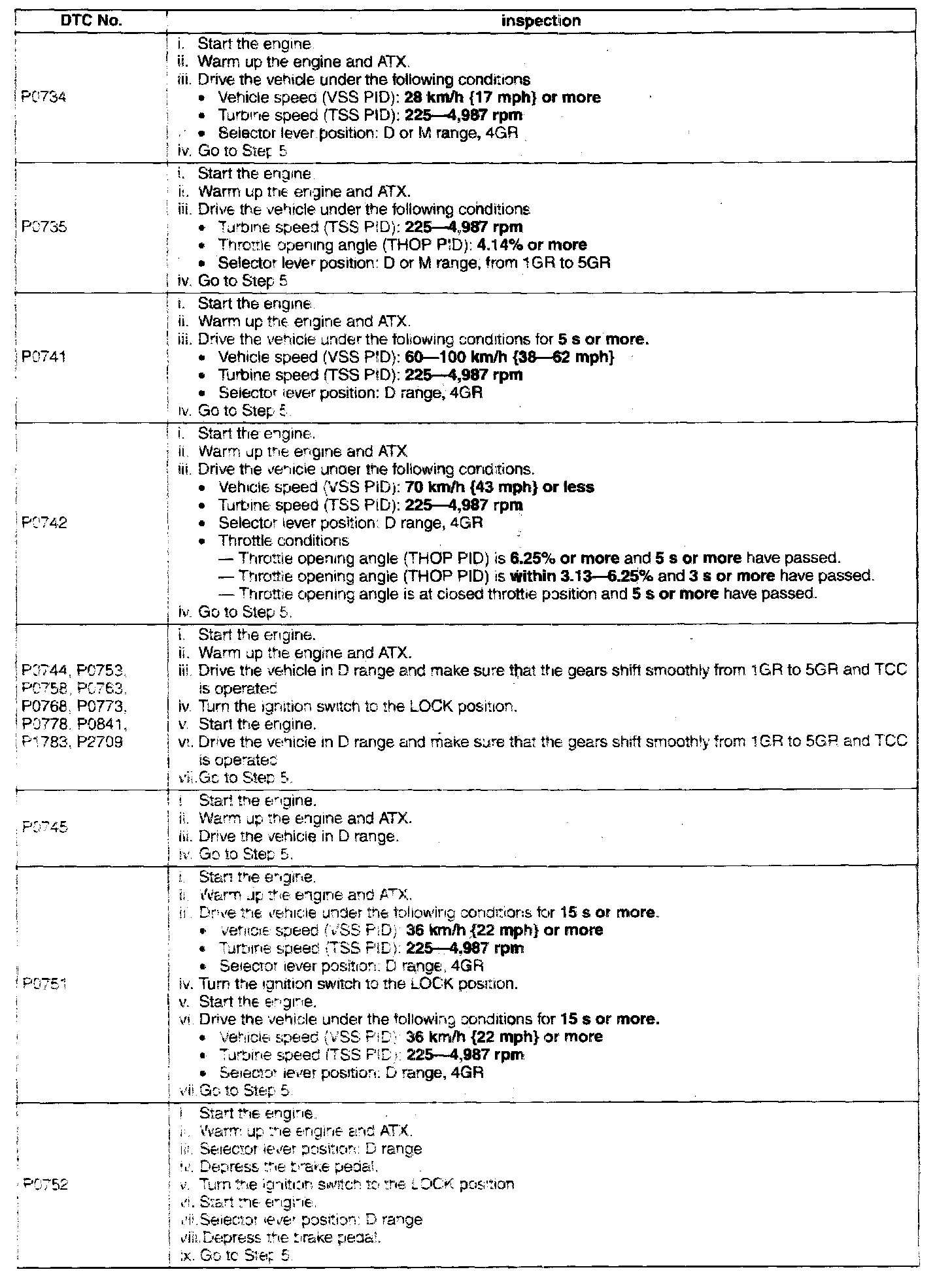

P0734-P0752:

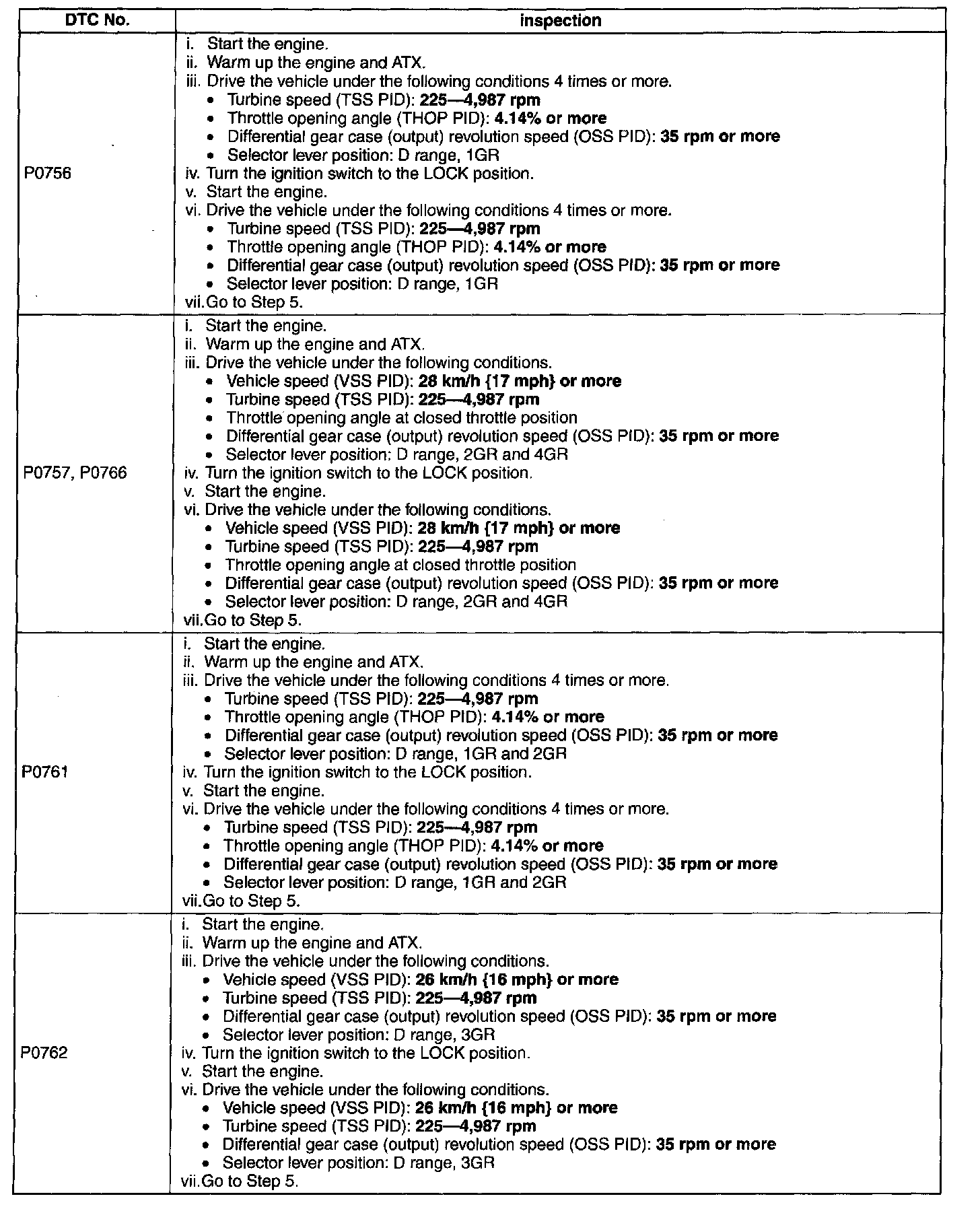

P0756-P0762:

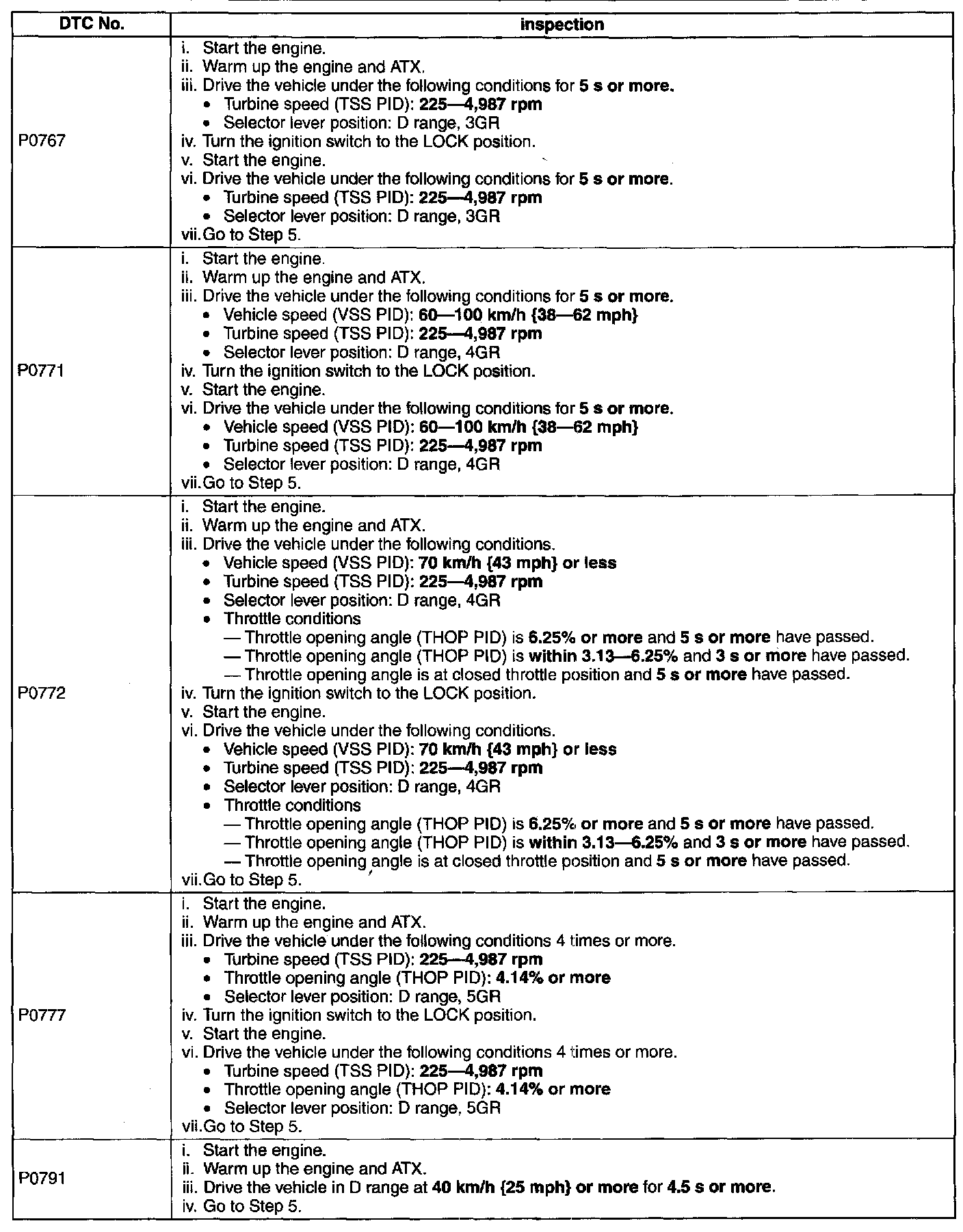

P0767-P0791:

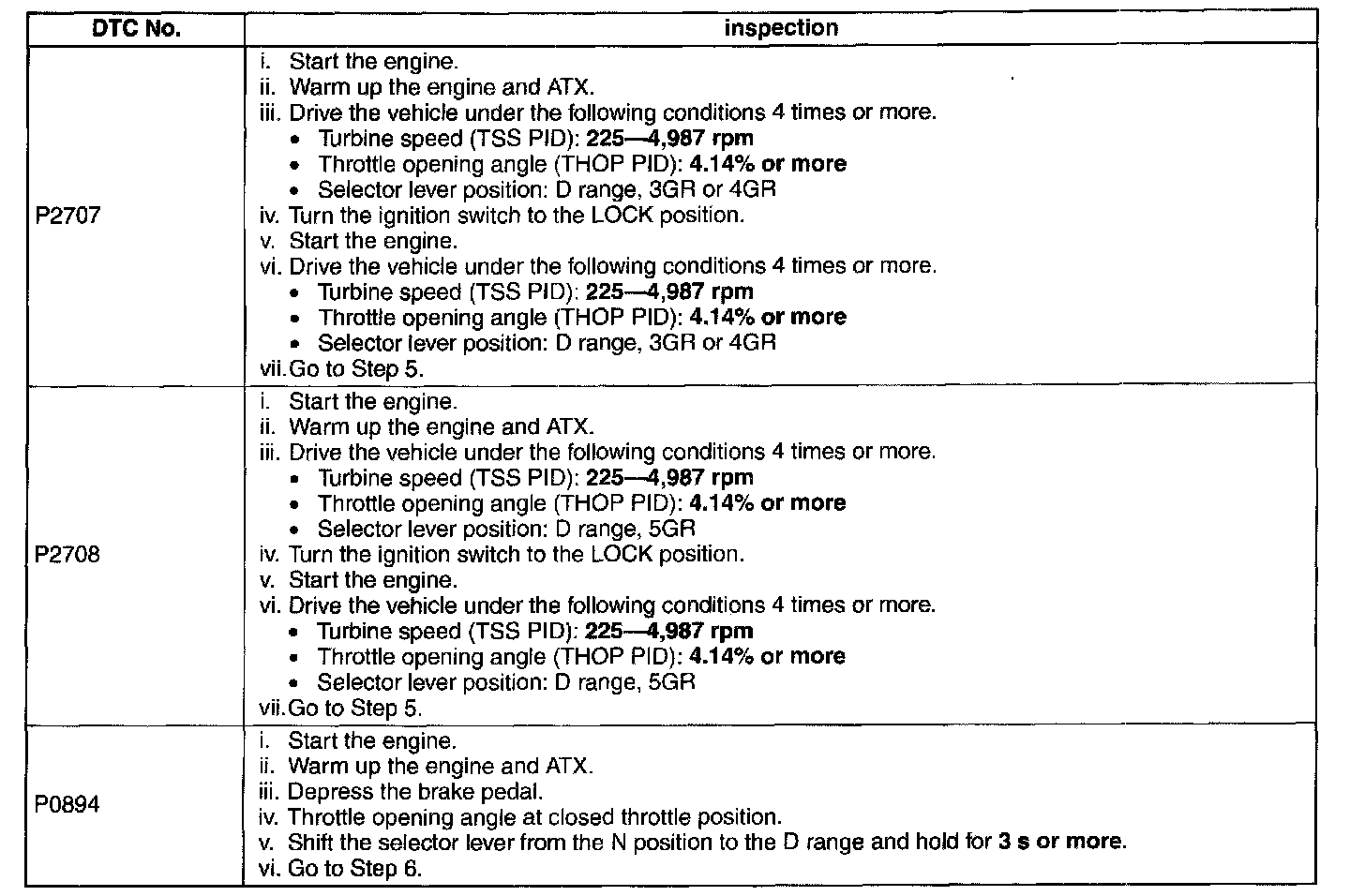

P2707-P0894:

5. Gradually slow down and stop the vehicle.
6. Make sure that the repaired DTC does not recur.
